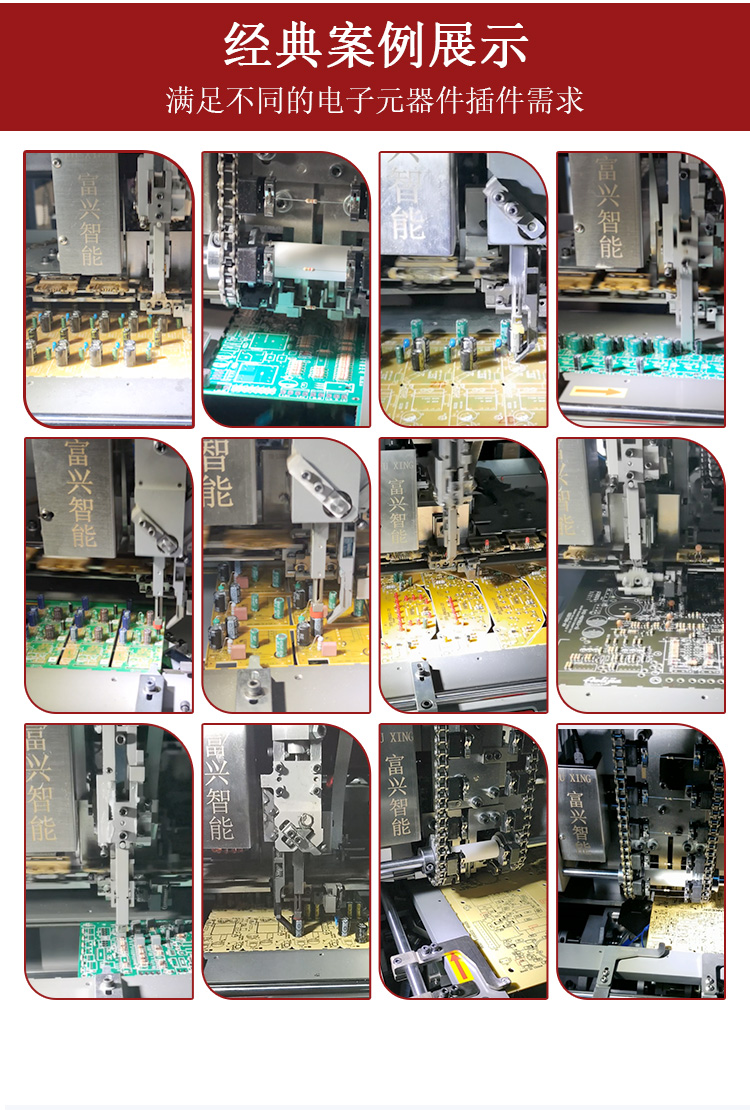

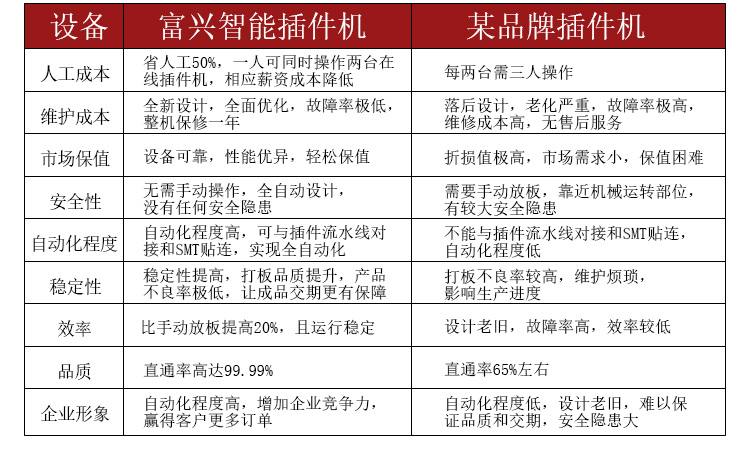

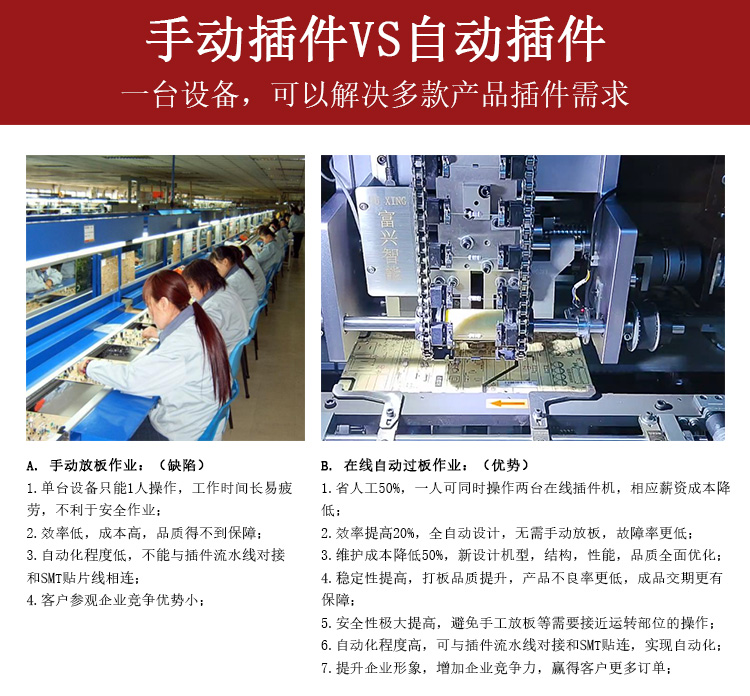

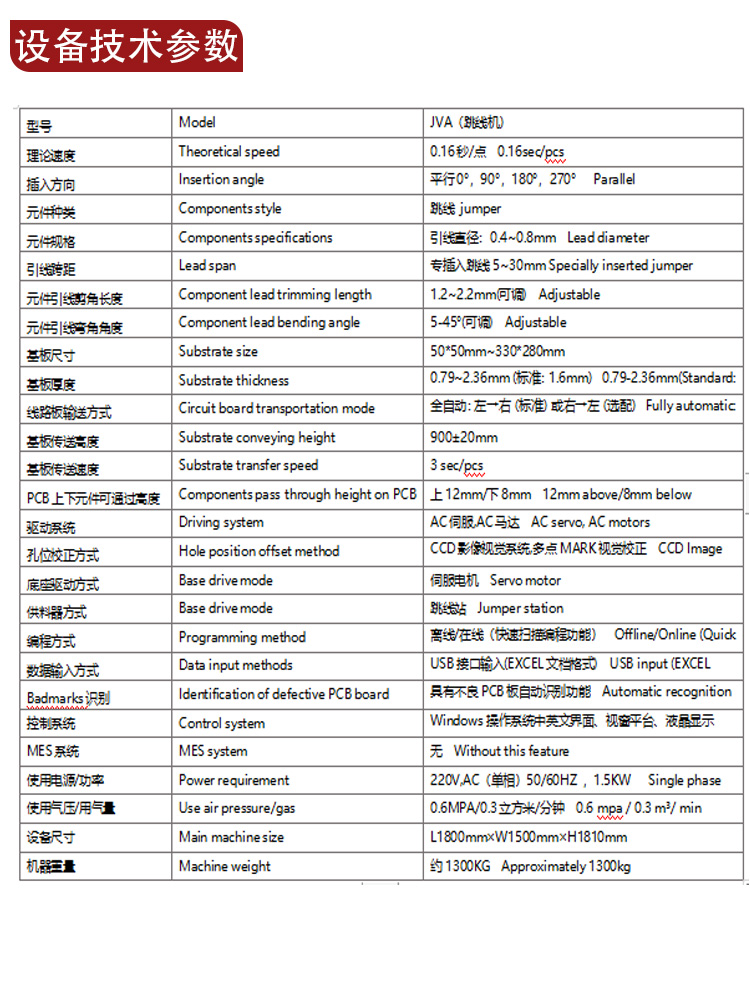

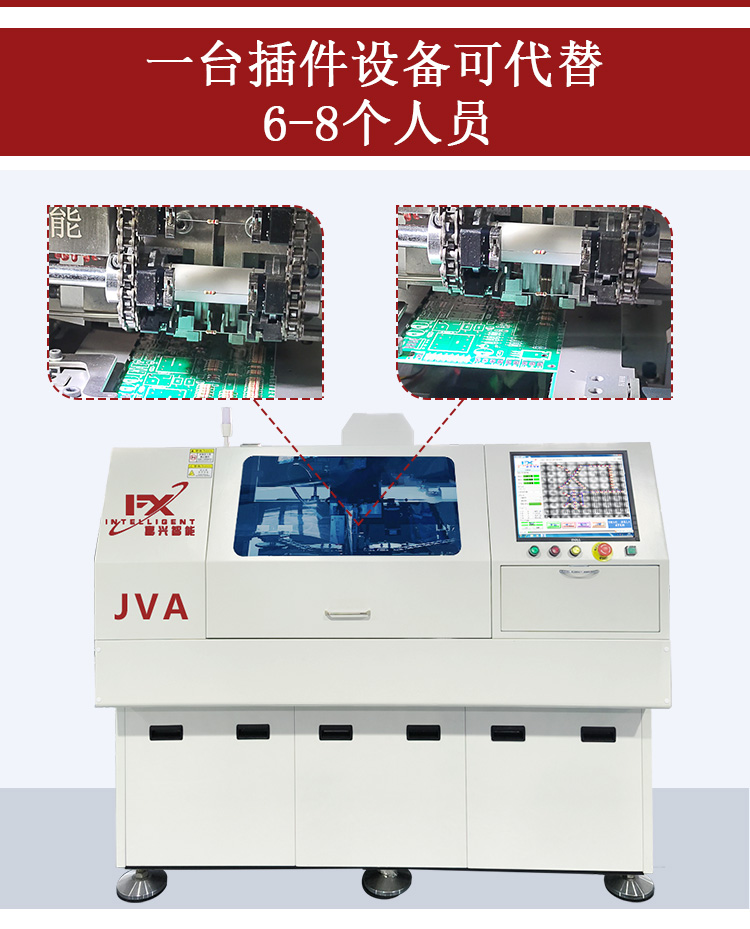

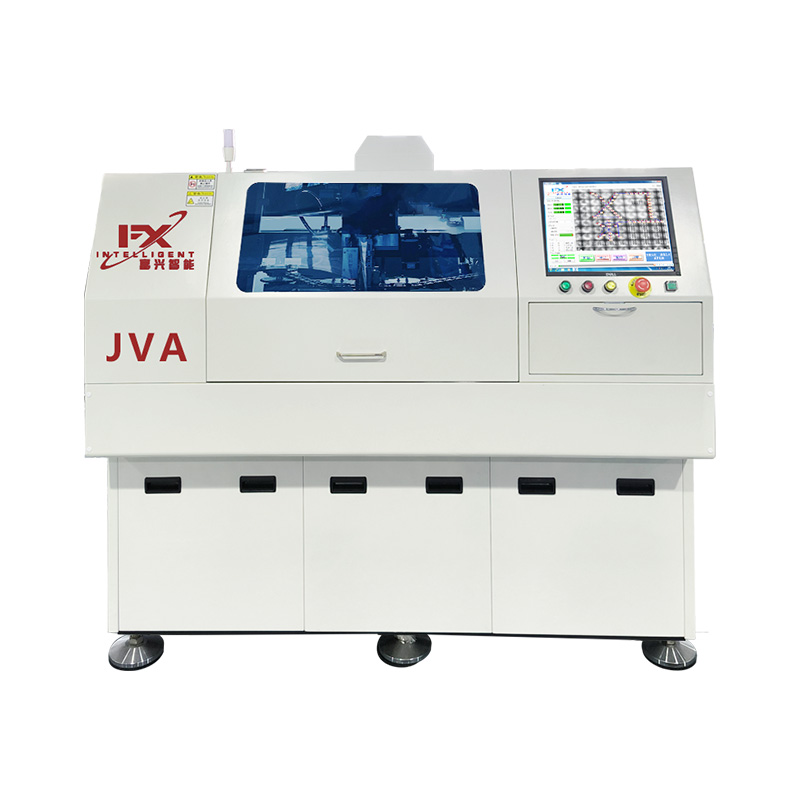

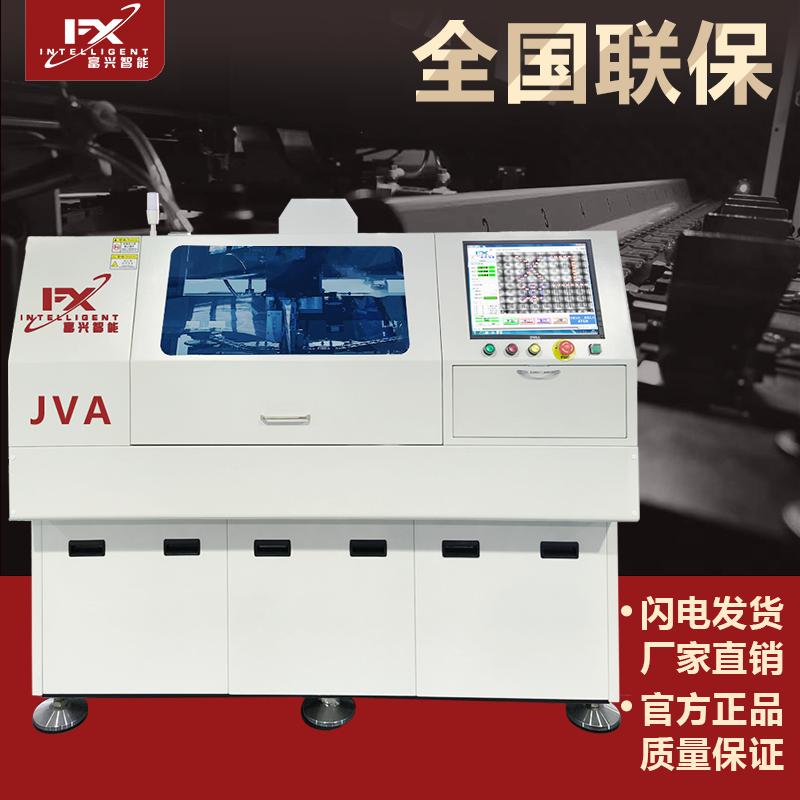

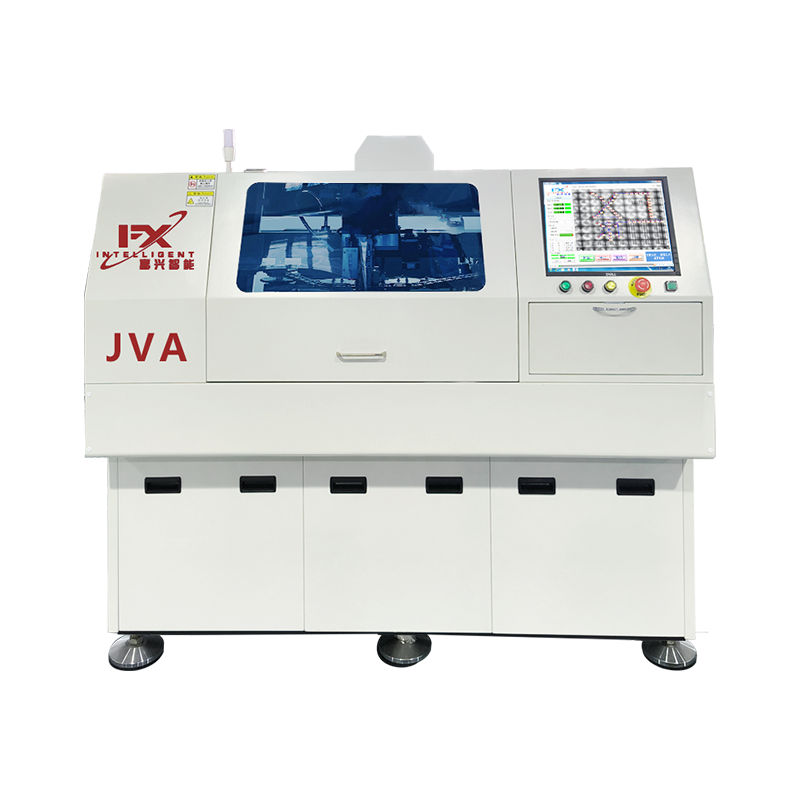

型號 |
Model |
JVA(跳線機) |
理論速度 |
Theoretical speed |
0.16秒/點 ?0.16sec/pcs |
插入方向 |
Insertion angle |
平行0°,90°,180°,270° ??Parallel |
元件種類 |
Components style |
跳線?jumper |

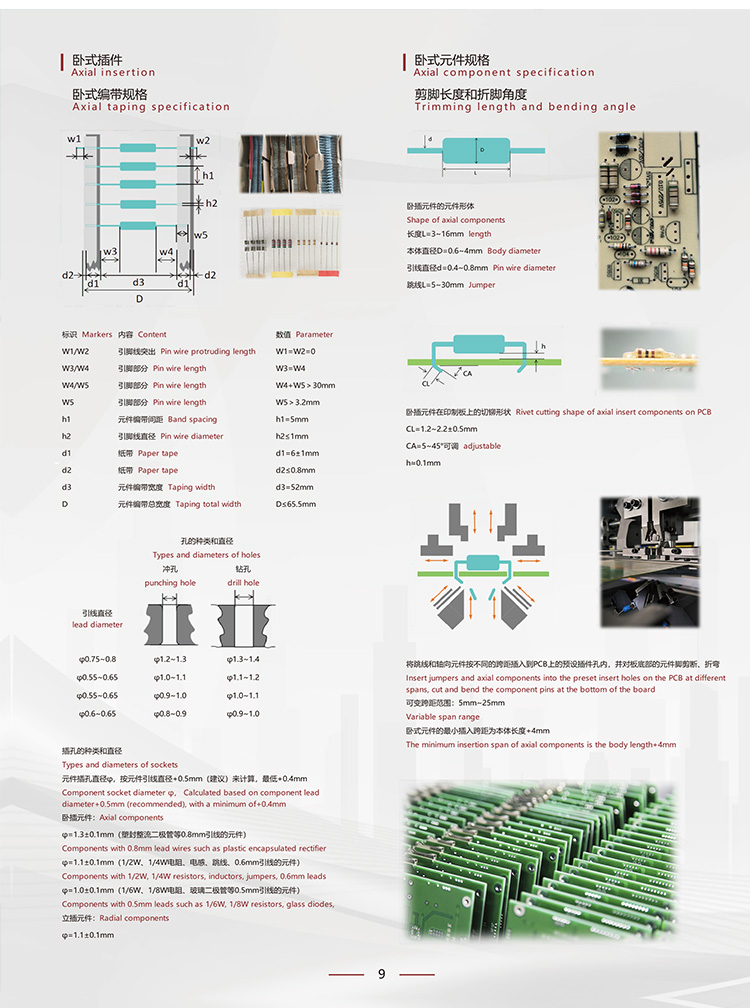

元件規格 |
Components specifications |
引線直徑:0.4~0.8mm ?Lead diameter |

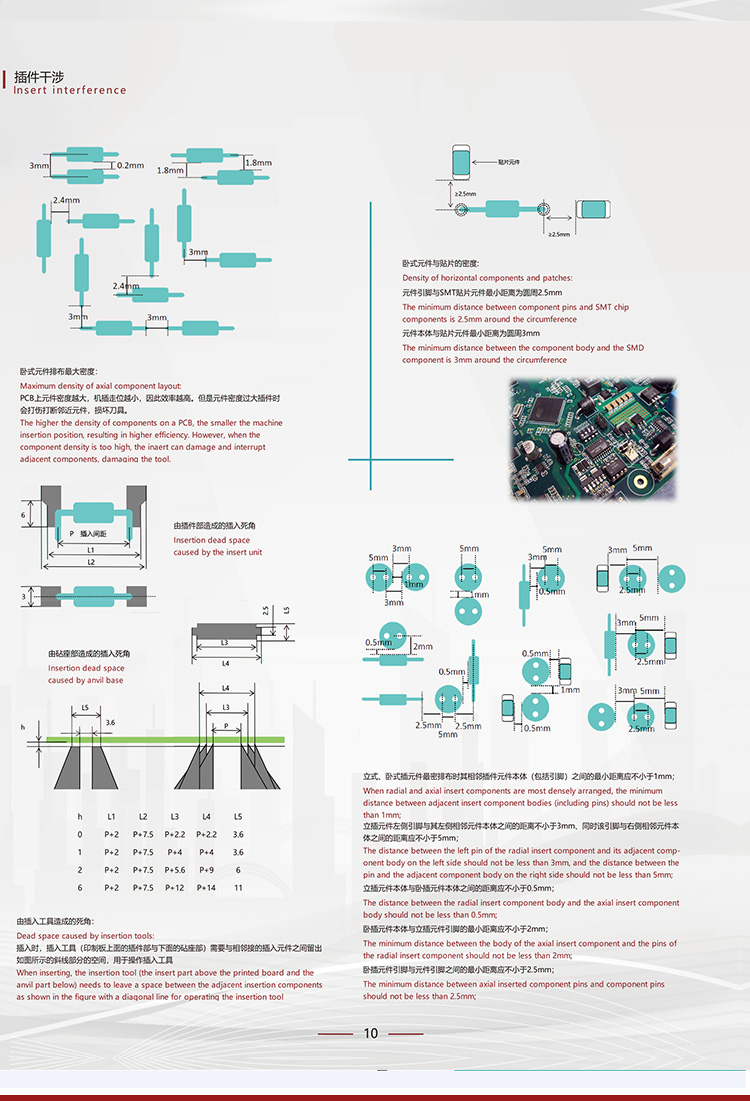

引線跨距 |
Lead span |
專插入跳線5~30mm Specially inserted jumper |

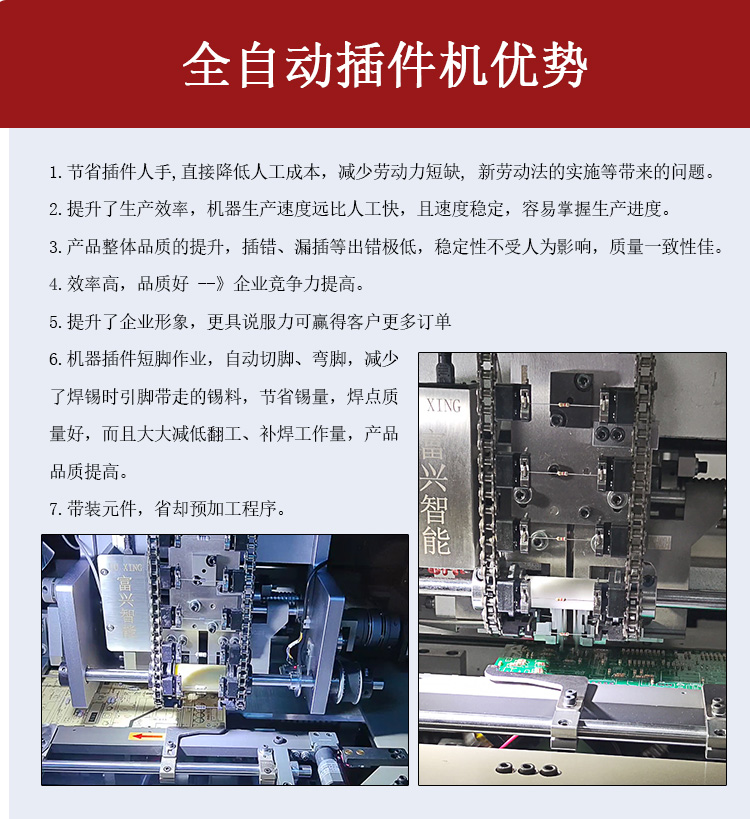

元件引線剪角長度 |
Component lead trimming length |
1.2~2.2mm(可調) ?Adjustable |
元件引線彎角角度 |
Component lead bending angle |
5-45°(可調) ?Adjustable |
基板尺寸 |
Substrate size |
50*50mm~330*280mm |
基板厚度 |
Substrate thickness |
0.79~2.36mm (標準:1.6mm) 0.79-2.36mm(Standard: 1.6mm) |
線路板輸送方式 |
Circuit board transportation mode |
全自動:左→右(標準)或右→左(選配)?Fully automatic: left right (standard) or right left (optional) |
基板傳送高度 |
Substrate conveying height |
900±20mm |
基板傳送速度 |
Substrate transfer speed |
3 sec/pcs |
PCB上下元件可通過高度 |
Components pass through height on PCB |
上12mm/下8mm ?12mm above/8mm below |
驅動系統 |
Driving system |
AC伺服,AC馬達 ?AC servo, AC motors |
孔位校正方式 |
Hole position offset method |
CCD影像視覺系統,多點MARK視覺校正 ?CCD Image visual systems, multi-point MARK visual correction |
底座驅動方式 |
Base drive mode |
伺服電機 ?Servo motor |
供料器方式 |
Base drive mode |
跳線站 ?Jumper station |
編程方式 |
Programming method |
離線/在線(快速掃描編程功能) ?Offline/Online (Quick scan programming function) |
數據輸入方式 |
Data input methods |
USB接口輸入(EXCEL文檔格式) ?USB input (EXCEL document-format) |
Badmarks識別 |
Identification of defective PCB board |
具有不良PCB板自動識別功能 ?Automatic recognition function for defective PCB boards |
控制系統 |
Control system |
Windows操作系統中英文界面、視窗平臺、液晶顯示 ? |
MES系統 |
MES system |
無 ?Without this feature |
使用電源/功率 |
Power requirement |
220V,AC(單相)50/60HZ ,1.5KW ??Single phase |
使用氣壓/用氣量 |
Use air pressure/gas |
0.6MPA/0.3立方米/分鐘 ?0.6 mpa / 0.3 m3/ min |
設備尺寸 |
Main machine size |
L1800mm×W1500mm×H1810mm |
機器重量 |
Machine weight |
約1300KG ?Approximately 1300kg |
