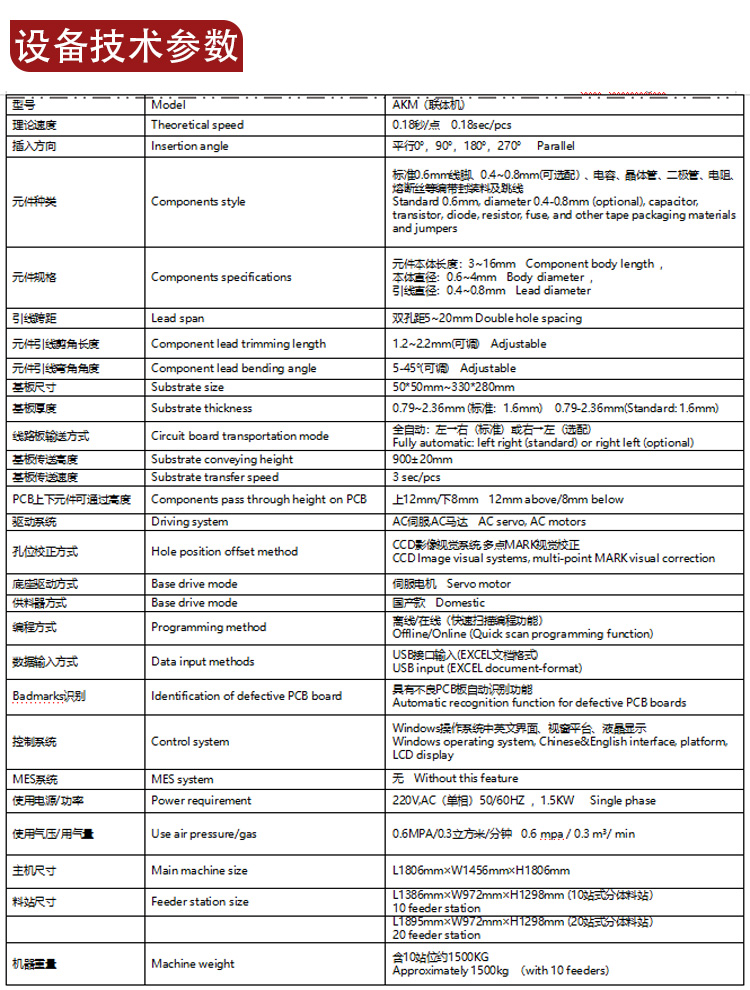

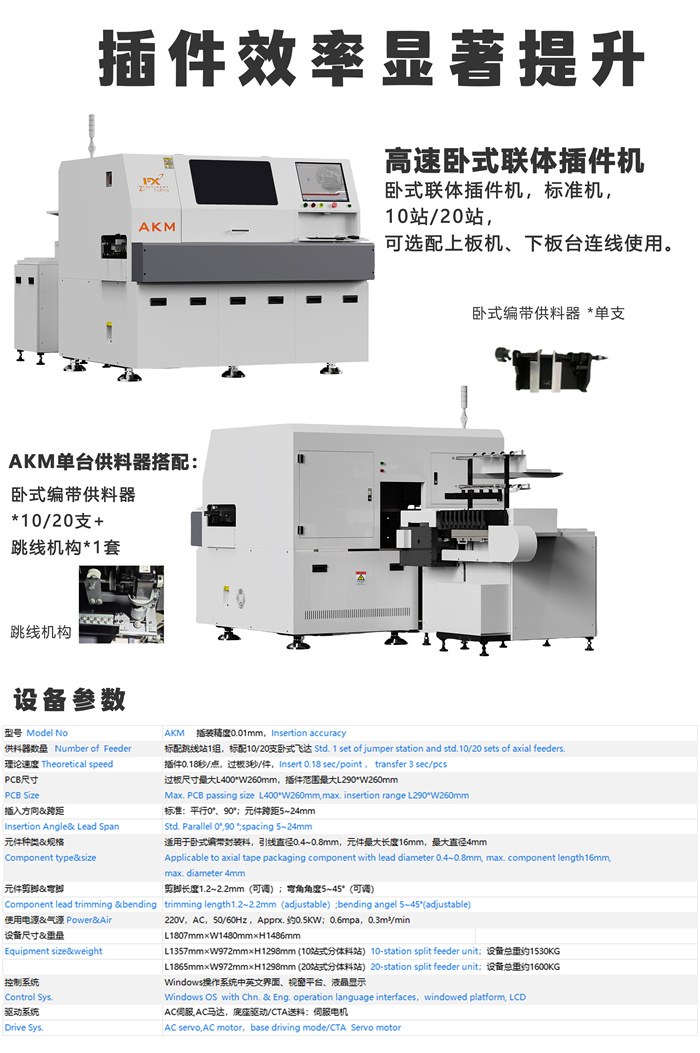

型號 |
Model |

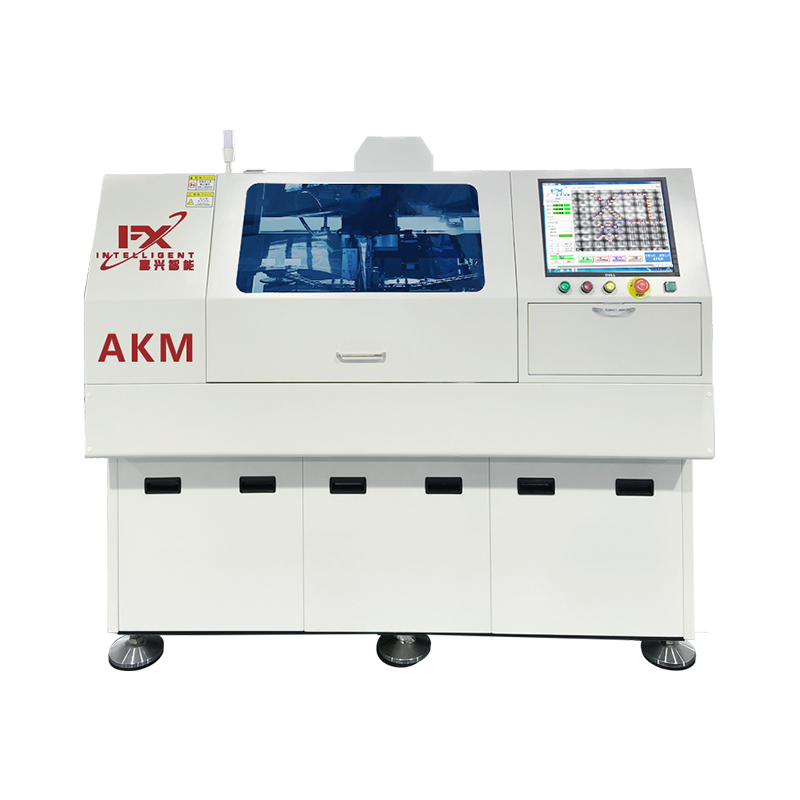

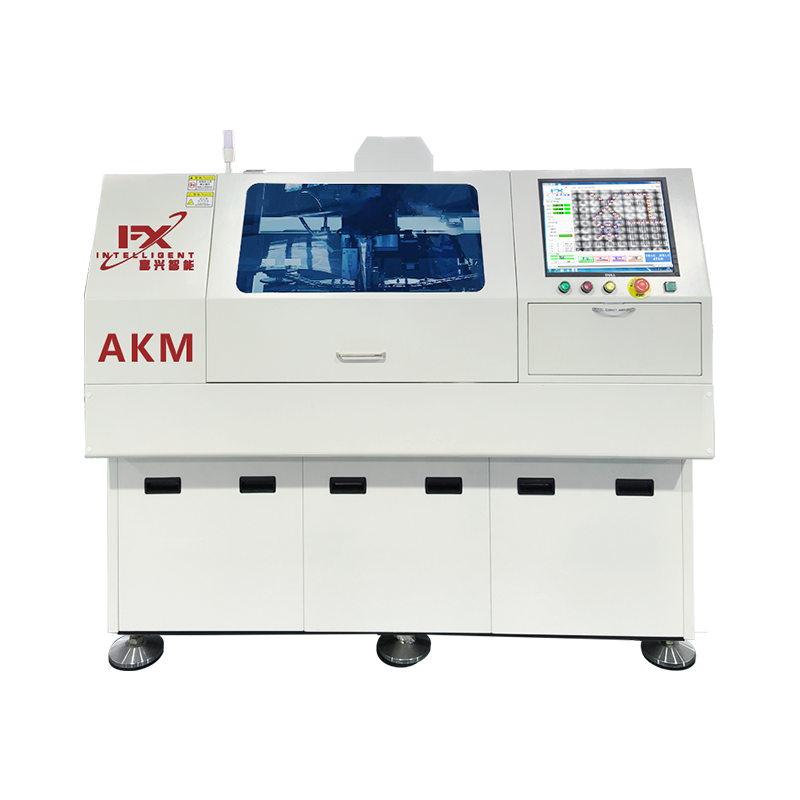

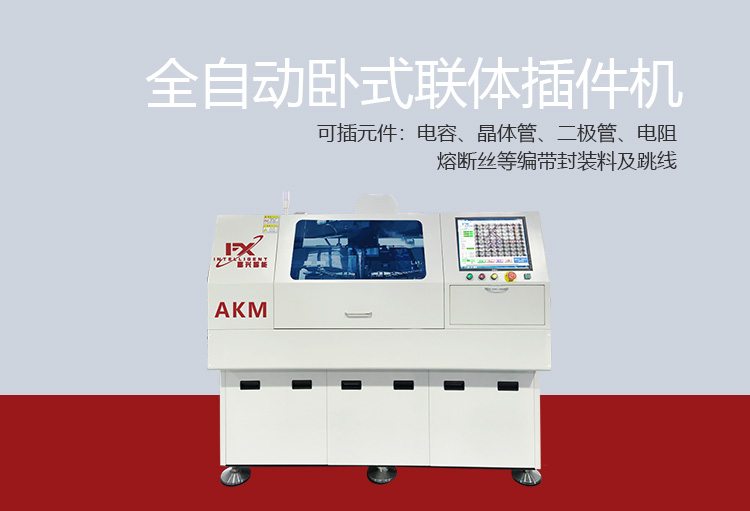

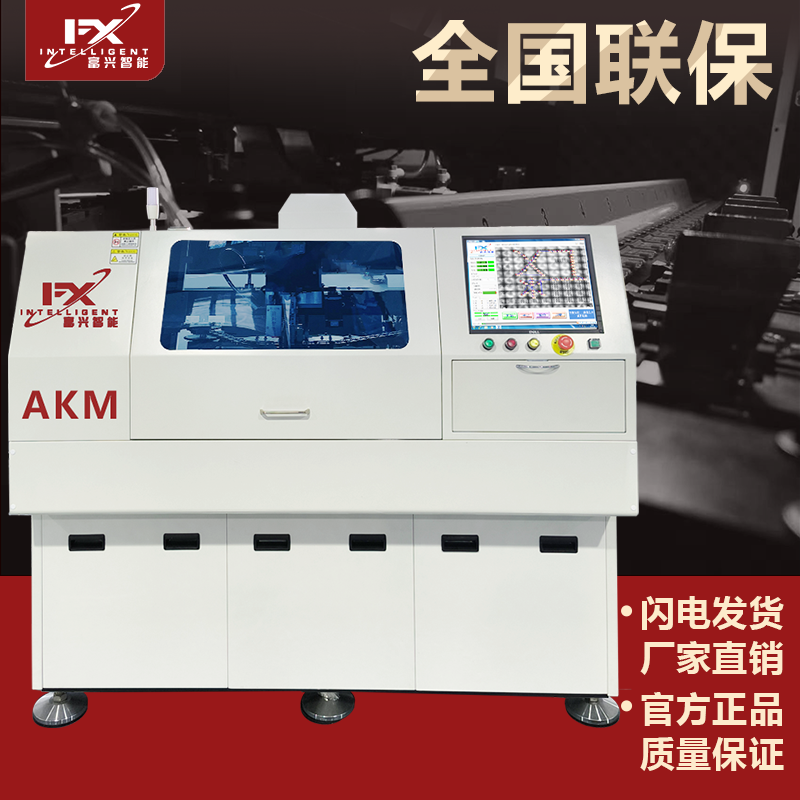

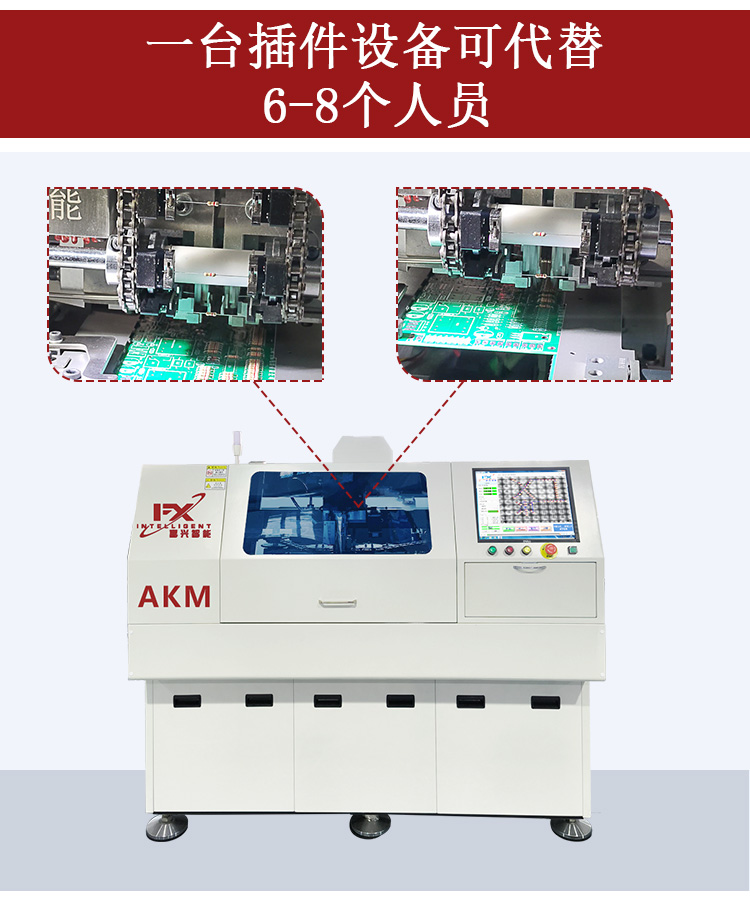

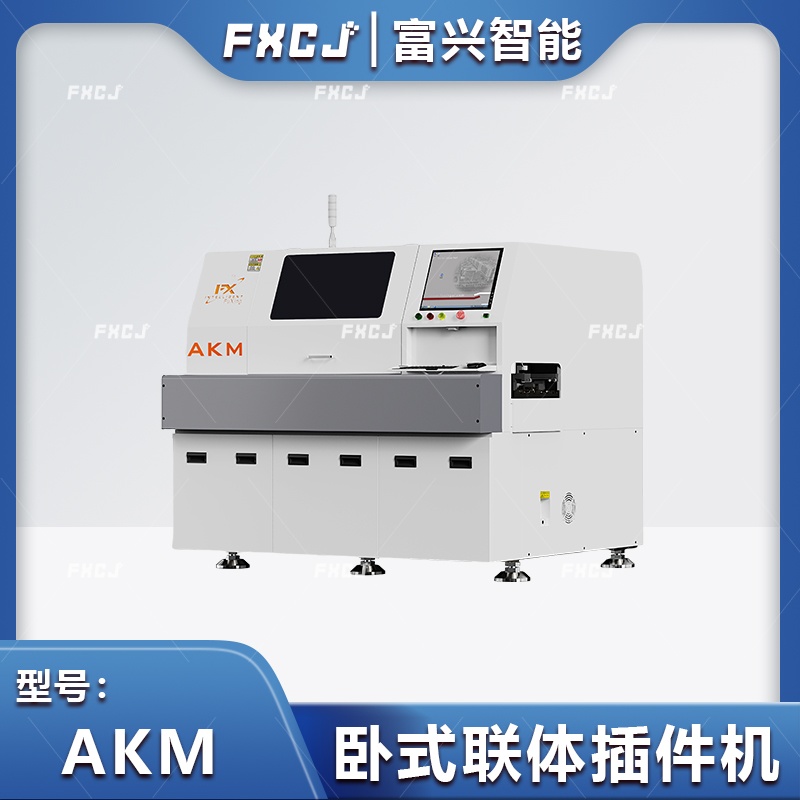

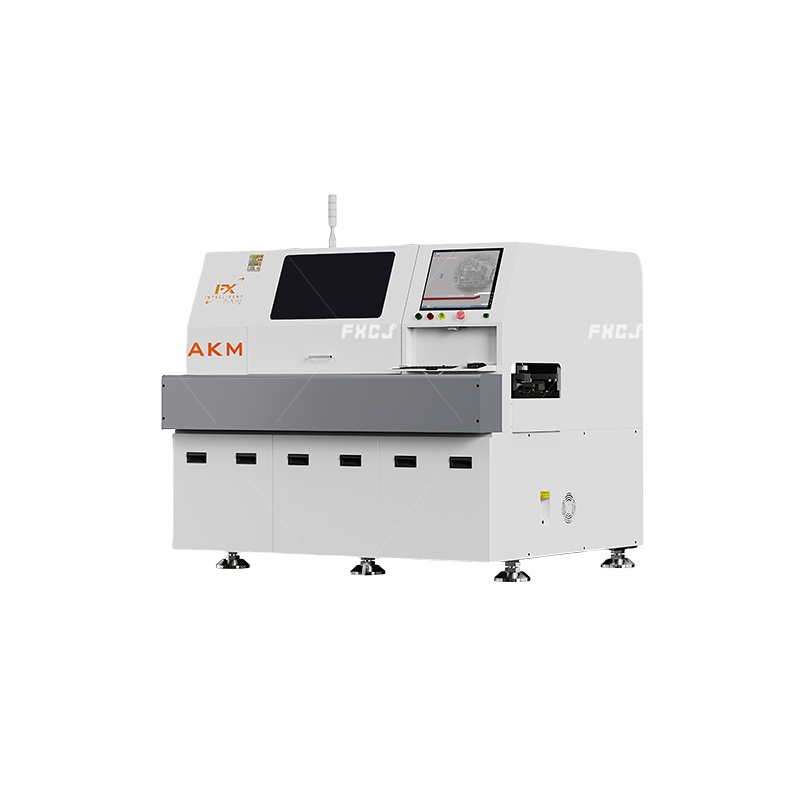

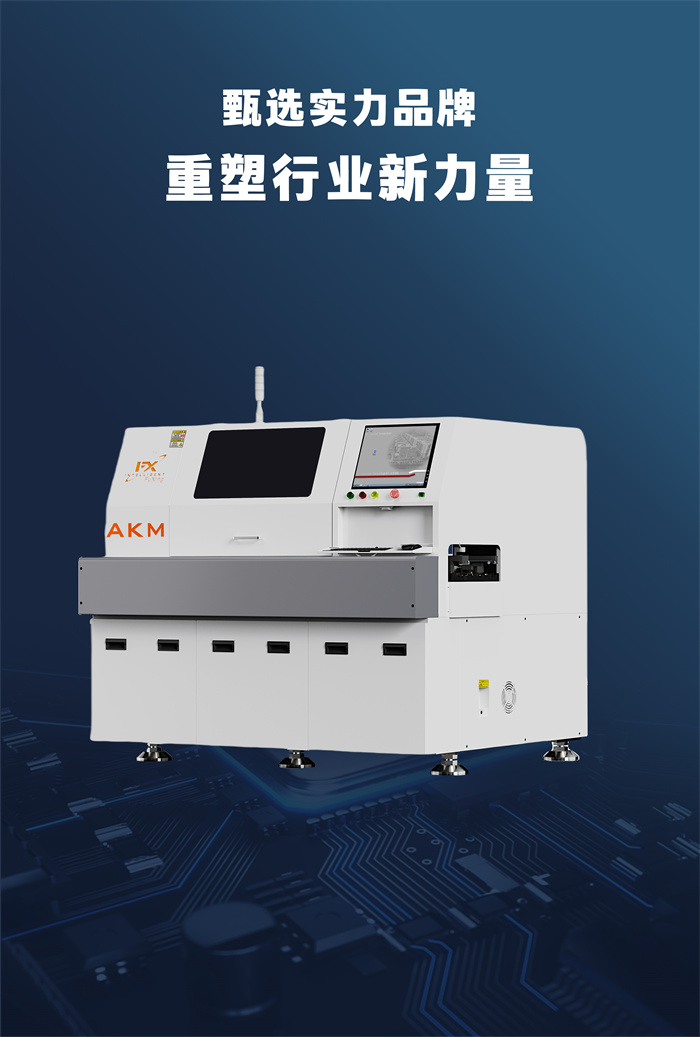

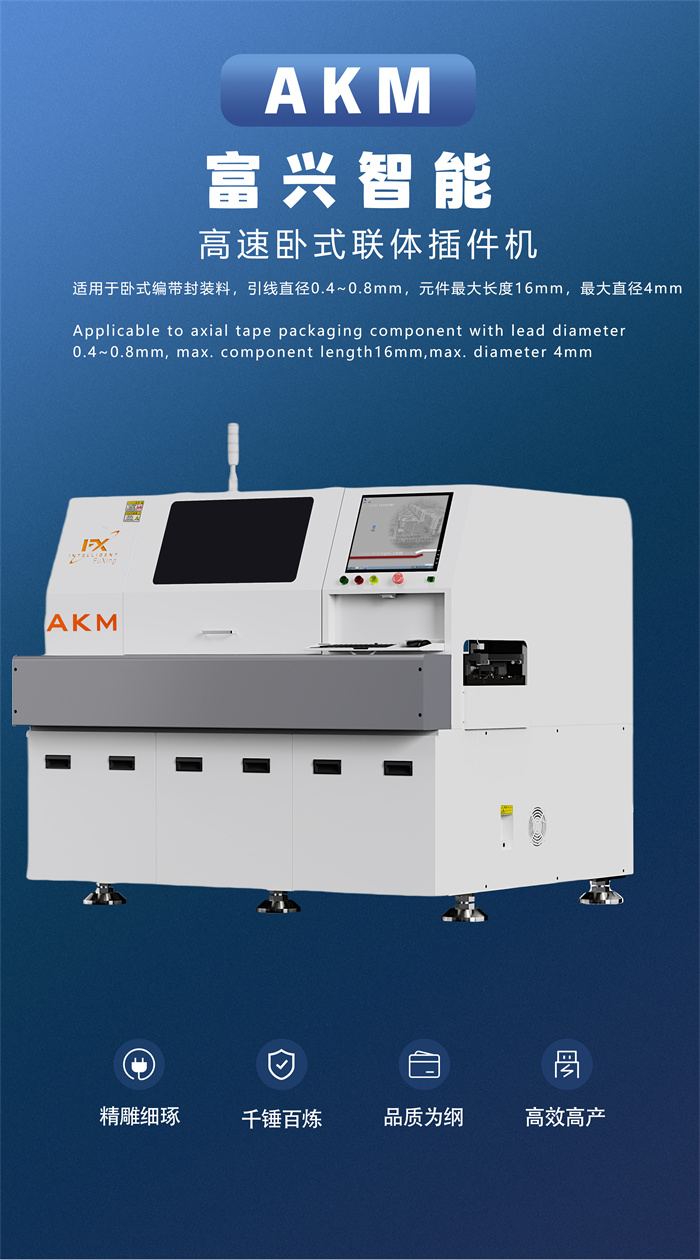

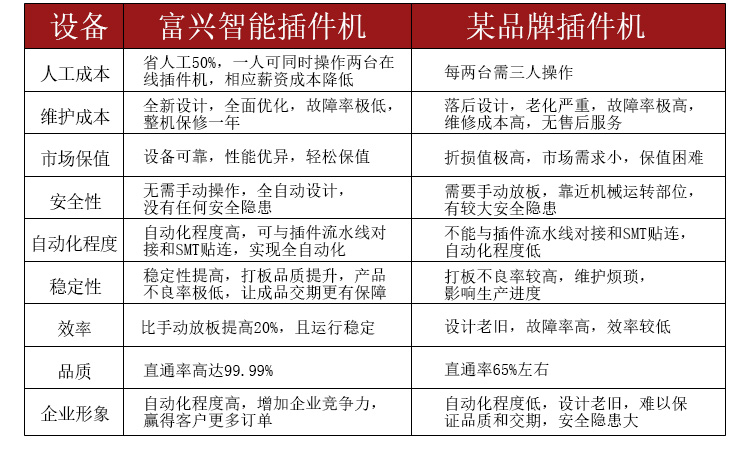

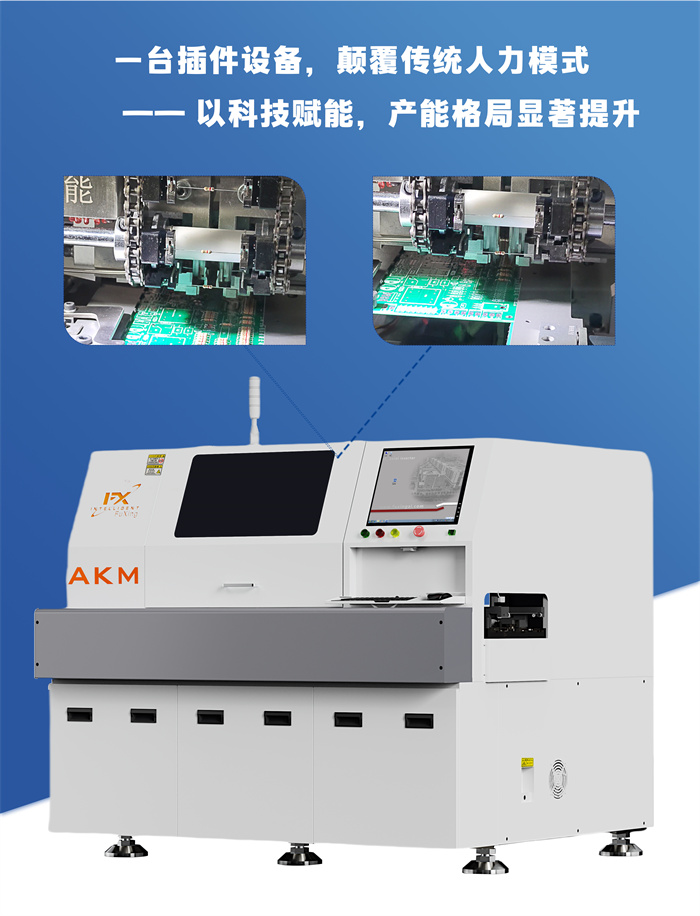

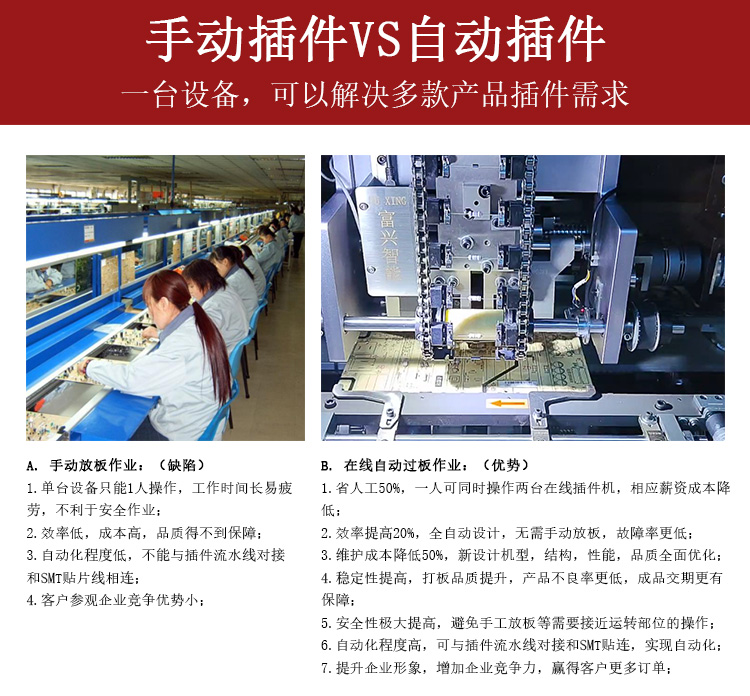

AKM(聯體機) |
理論速度 |
Theoretical speed |
0.18秒/點 ?0.18sec/pcs |
插入方向 |
Insertion angle |
平行0°,90°,180°,270° ??Parallel |

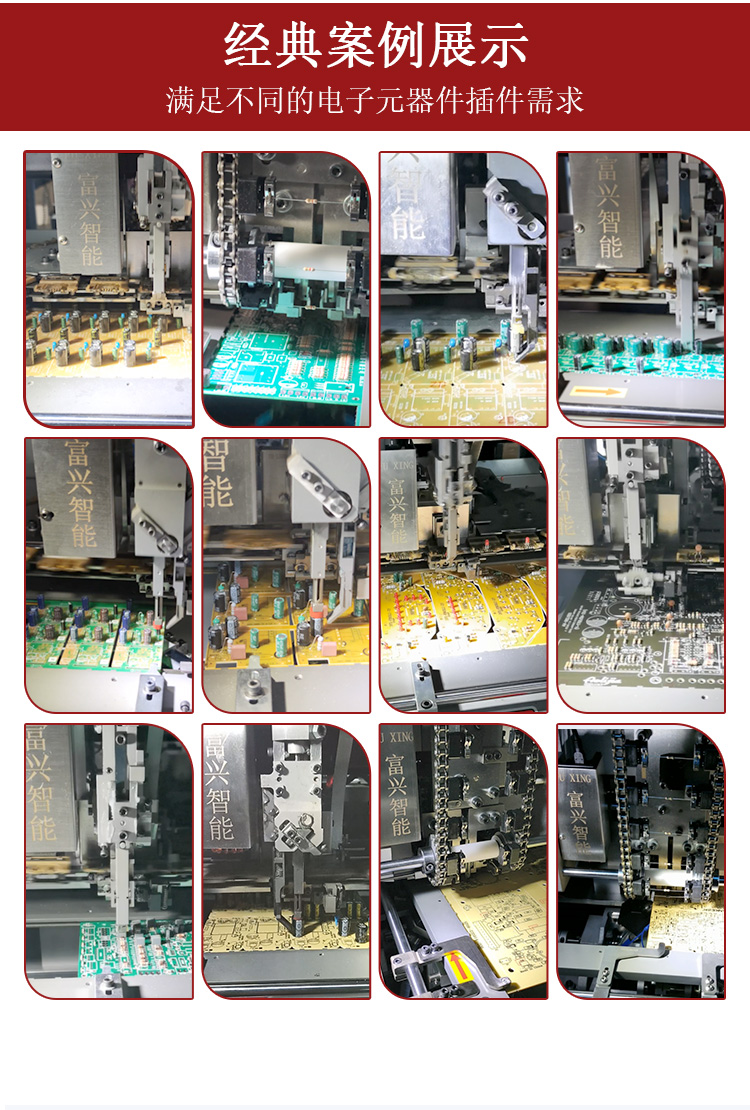

元件種類 |
Components style |
標準0.6mm線腳、0.4~0.8mm(可選配)、電容、晶體管、二極管、電阻、熔斷絲等編帶封裝料及跳線 Standard 0.6mm, diameter 0.4-0.8mm (optional), capacitor, transistor, diode, resistor, fuse, and other tape packaging materials and jumpers |

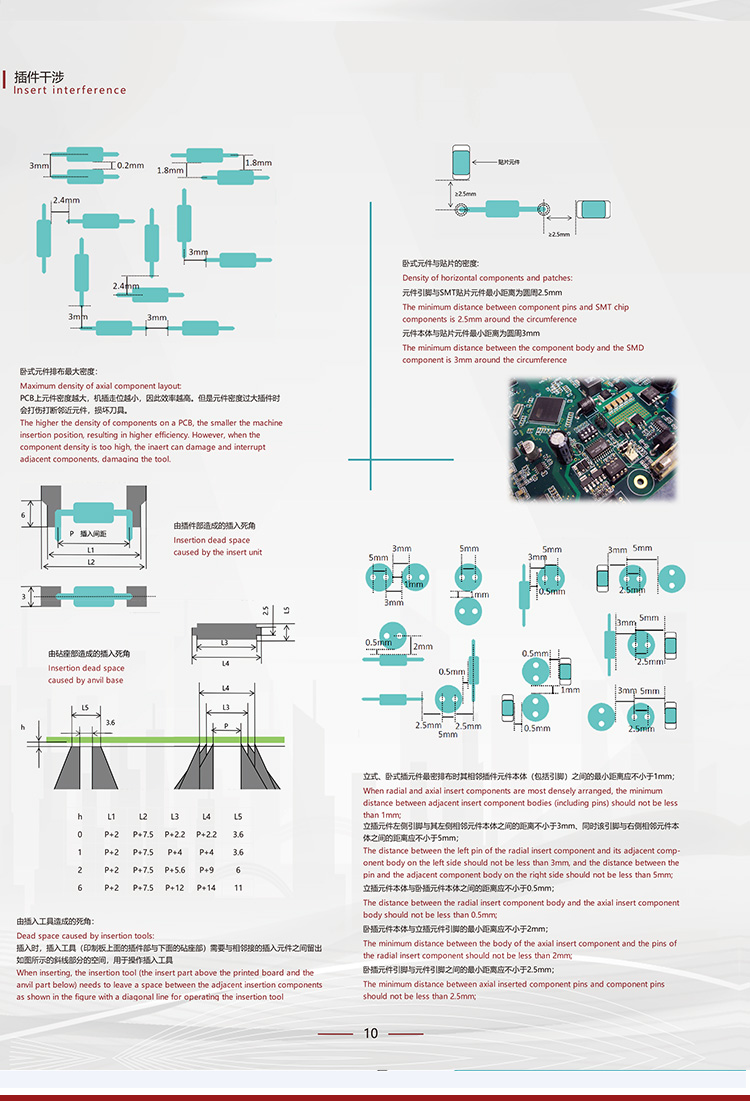

元件規格 |
Components specifications |

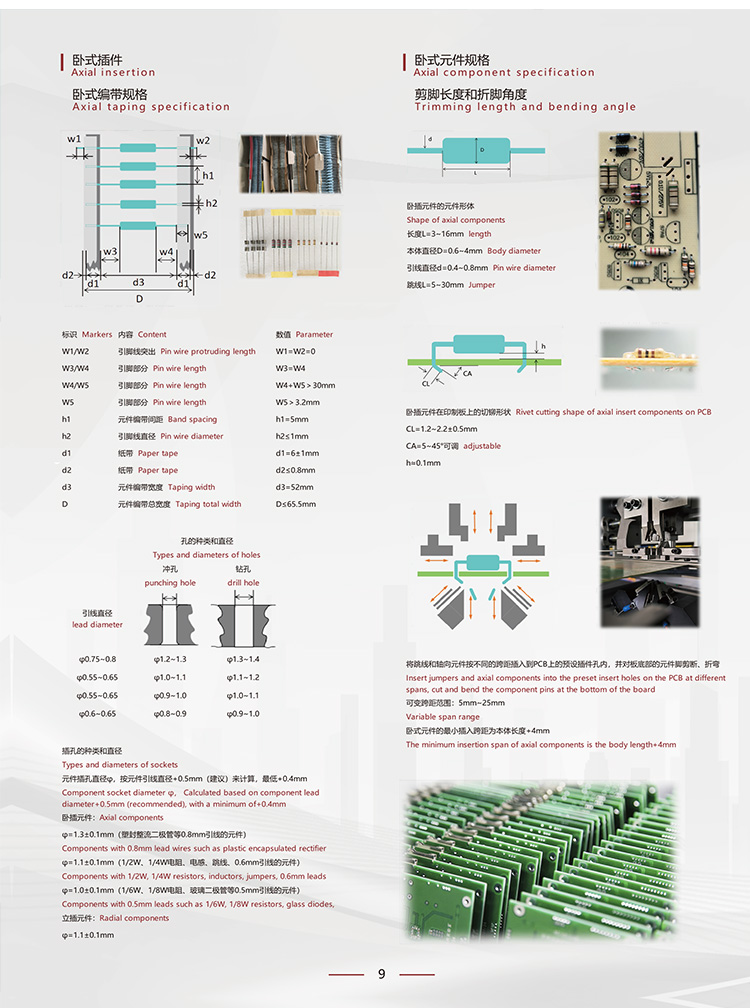

元件本體長度:3~16mm ?Component body length?, 本體直徑:0.6~4mm ?Body diameter?, 引線直徑:0.4~0.8mm ?Lead diameter |
引線跨距 |
Lead span |
雙孔距5~20mm Double hole spacing |
元件引線剪角長度 |
Component lead trimming length |
1.2~2.2mm(可調) ?Adjustable |
元件引線彎角角度 |
Component lead bending angle |
5-45°(可調) ?Adjustable |
基板尺寸 |
Substrate size |
50*50mm~330*280mm |
基板厚度 |
Substrate thickness |
0.79~2.36mm (標準:1.6mm) 0.79-2.36mm(Standard: 1.6mm) |
線路板輸送方式 |
Circuit board transportation mode |
全自動:左→右(標準)或右→左(選配) Fully automatic: left right (standard) or right left (optional) |
基板傳送高度 |
Substrate conveying height |
900±20mm |
基板傳送速度 |
Substrate transfer speed |
3 sec/pcs |
PCB上下元件可通過高度 |
Components pass through height on PCB |
上12mm/下8mm ?12mm above/8mm below |
驅動系統 |
Driving system |
AC伺服,AC馬達 ?AC servo, AC motors |
孔位校正方式 |
Hole position offset method |
CCD影像視覺系統,多點MARK視覺校正 |
底座驅動方式 |
Base drive mode |
伺服電機 ?Servo motor |
供料器方式 |
Base drive mode |
國產款 ?Domestic |
編程方式 |
Programming method |
離線/在線(快速掃描編程功能) ? |
數據輸入方式 |
Data input methods |
USB接口輸入(EXCEL文檔格式) ? |
Badmarks識別 |
Identification of defective PCB board |
具有不良PCB板自動識別功能 ? |

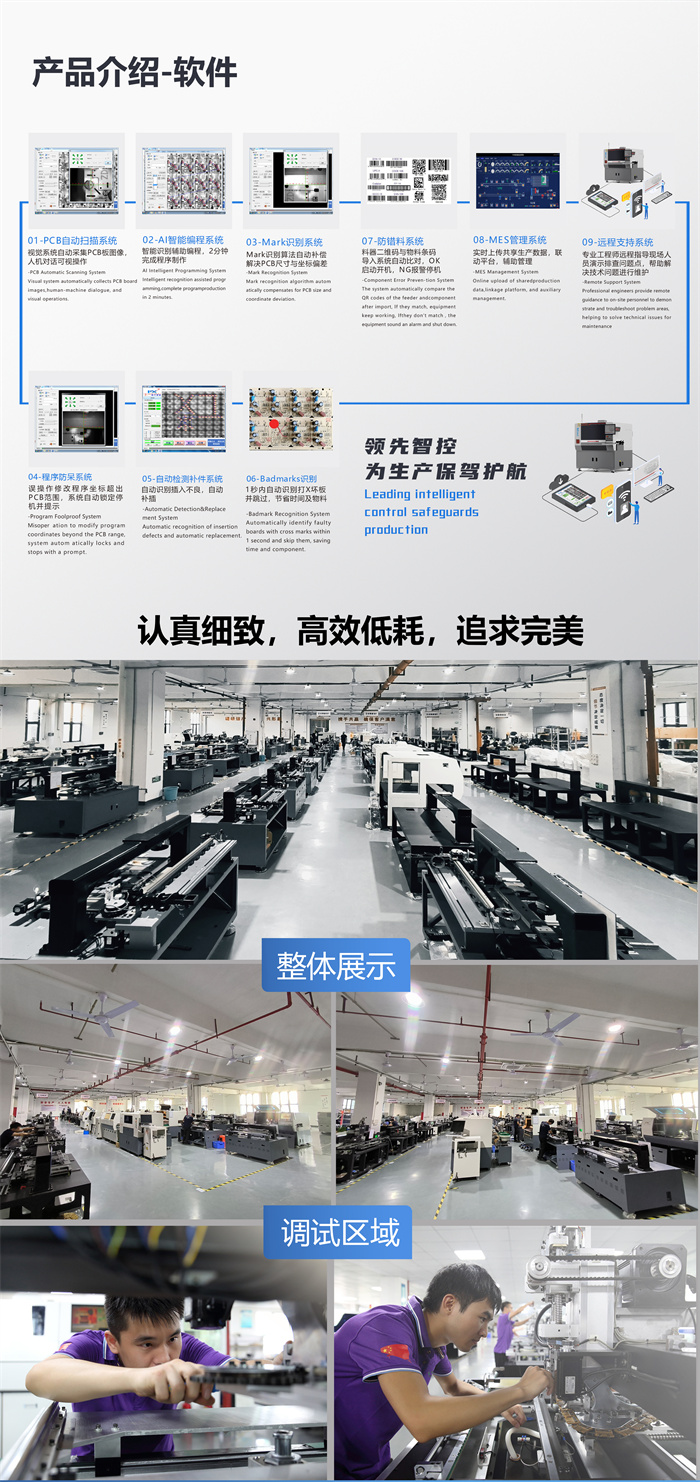

控制系統 |
Control system |
Windows操作系統中英文界面、視窗平臺、液晶顯示 ?? Windows operating system, Chinese&English interface, platform, LCD display |
MES系統 |
MES system |
無 ?Without this feature |
使用電源/功率 |
Power requirement |
220V,AC(單相)50/60HZ ,1.5KW ??Single phase |
使用氣壓/用氣量 |
Use air pressure/gas |
0.6MPA/0.3立方米/分鐘 ?0.6 mpa / 0.3 m3/ min |
主機尺寸 |
Main machine size |
L1806mm×W1456mm×H1806mm |
料站尺寸 |
Feeder station size |
L1386mm×W972mm×H1298mm (10站式分體料站) |
? |
? |
L1895mm×W972mm×H1298mm (20站式分體料站) |
機器重量 |
Machine weight |
含10站位約1500KG |
